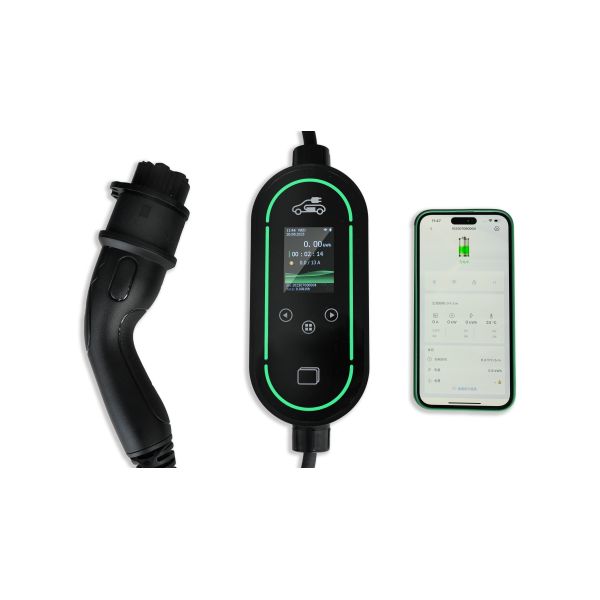

The EVB11B Home Fast Charging Station revolutionizes at-home EV charging by delivering professional-grade power in a compact, user-friendly design. Engineered specifically for residential use, this 11kW charging solution can fully recharge most electric vehicles overnight, with many models achieving complete charges in just 4-6 hours - up to three times faster than standard Level 1 chargers.
Featuring intelligent power management, the EVB11B automatically adjusts charging current from 6A to 16A, preventing circuit overload while optimizing charging speed for your home's electrical capacity. The sleek control box with IP67 rating ensures reliable outdoor performance, perfectly suited for driveway or garage installation. Its 5-meter charging cable provides ample reach, while the flame-retardant, UV-resistant housing maintains integrity through years of exposure.
Smart connectivity transforms your charging experience. Through intuitive mobile app control via WiFi/Bluetooth, homeowners can schedule charging sessions during off-peak hours for maximum cost savings, monitor real-time energy consumption, and receive charging completion alerts. The 2.4-inch LCD display clearly shows charging progress, voltage, power, and accumulated energy costs. Multiple security layers, including RFID authentication and password protection, ensure that only authorized users can access the charging functions. With comprehensive safety certifications and Type B RCD protection (AC 30mA+DC 6mA), the EVB11B provides enterprise-level safety for family use, making premium home EV charging accessible and worry-free.
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
How to install
Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.
Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping
screws.
Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.
